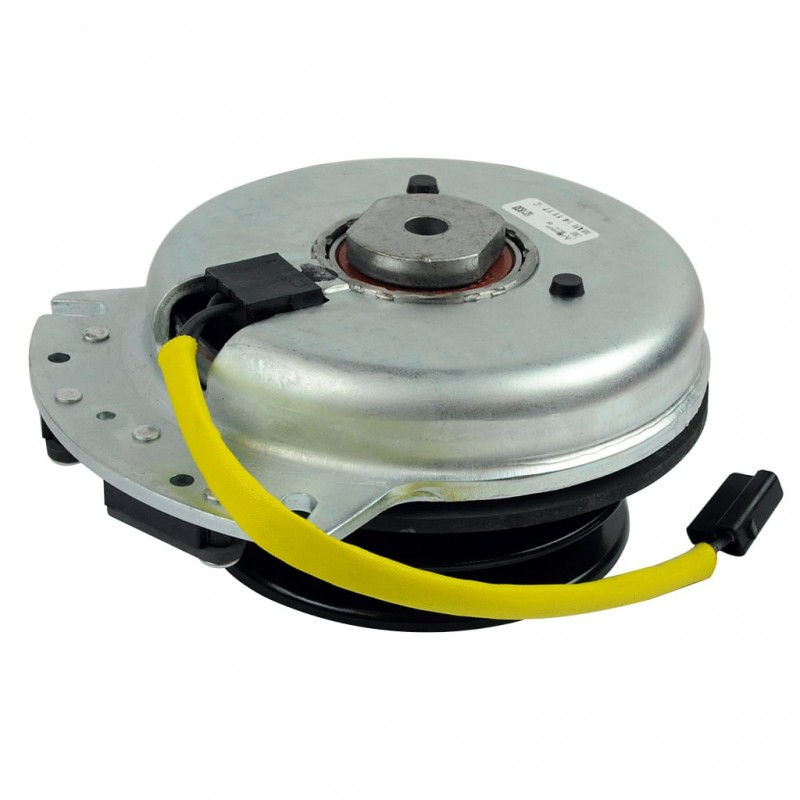

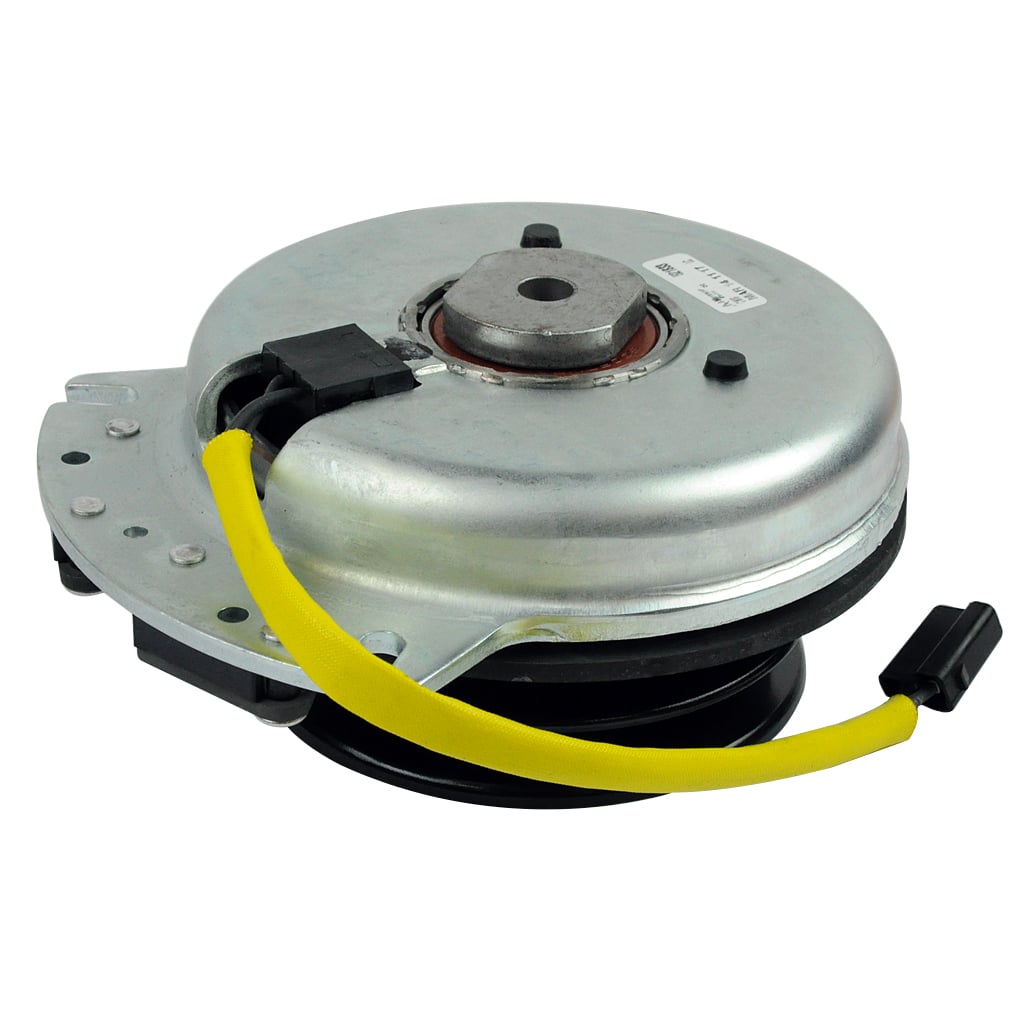

ELECTRIC PTO CLUTCH ASSEMBLY 1-1/8" ID X 4.875" PULLEY

Description: Non-Genuine Toro, Warner Electric PTO Clutch Assembly

Replaces OEM: Toro: 94-4632, 105-1671,

Warner: 5218-33,

Inside Diameter: (inches) 1 1/8"

Inside Diameter: (mm) 28.575 mm

Pulley Diameter: (inches) 4.875"

Pulley Diameter: (mm) 123.825 mm

Fits: Toro selected Z Master models including but not limited to Z320 (models 74191 and 74180 year 1998), Z325 (models 74182 and 74183 year 1998) and Z350 (model 74187 year 2000) zero turn radius (ZTR) ride-on models.

Features: Manufactured by an OEM supplier.

1 1/8" (28.575 mm) I.D Hub.

4.875" (123.825 mm) O.D Precision machined double pulley.

175 ft. lbs. torque.

Suitable for use with two 1/2" ("A" or 68 series) belts.

Operates in a clockwise direction (when viewed from the pulley side of the clutch).

Uses high torque cool coil technology.

High temperature bearings.

Replaceable pulley bearing.

Integrated, water tight and impact resistant wiring harness.

Standard Pack Quantity: 1

Please Note: IMPORTANT INFORMATION ON ELECTRIC CLUTCHES

Over the counter sales of clutches as spare parts should be discouraged.

WHY? - The main causes of failures to electric clutches are due to faults with the

battery and/or charging circuits not providing the correct current to operate the

clutch adequately leading to premature failure. Electric PTO clutches are a

specialist component that should only be fitted by a servicing dealer with the

correct equipment to test both the charging circuits and battery condition. It is

therefore the responsibility of the servicing dealer to test these items prior to

installing a new clutch. Failure to do so will void warranty. Warranty covers

normal use and does not cover damage or defect which results from alteration,

accident, neglect, or improper clutch selection, installation, operation, or

maintenance. Warranty covers faulty manufacture and/or workmanship.

GA Spares stocks electric clutches manufactured by an OEM supplier.

Brand: TORO Non-Genuine, Warner Non-Genuine,

Product Line: Clutch assembly - electric pto, electric pto clutch assembly, pto clutch assembly - electric,

GTIN: 9316596091324

Fitment: Toro, Warner
