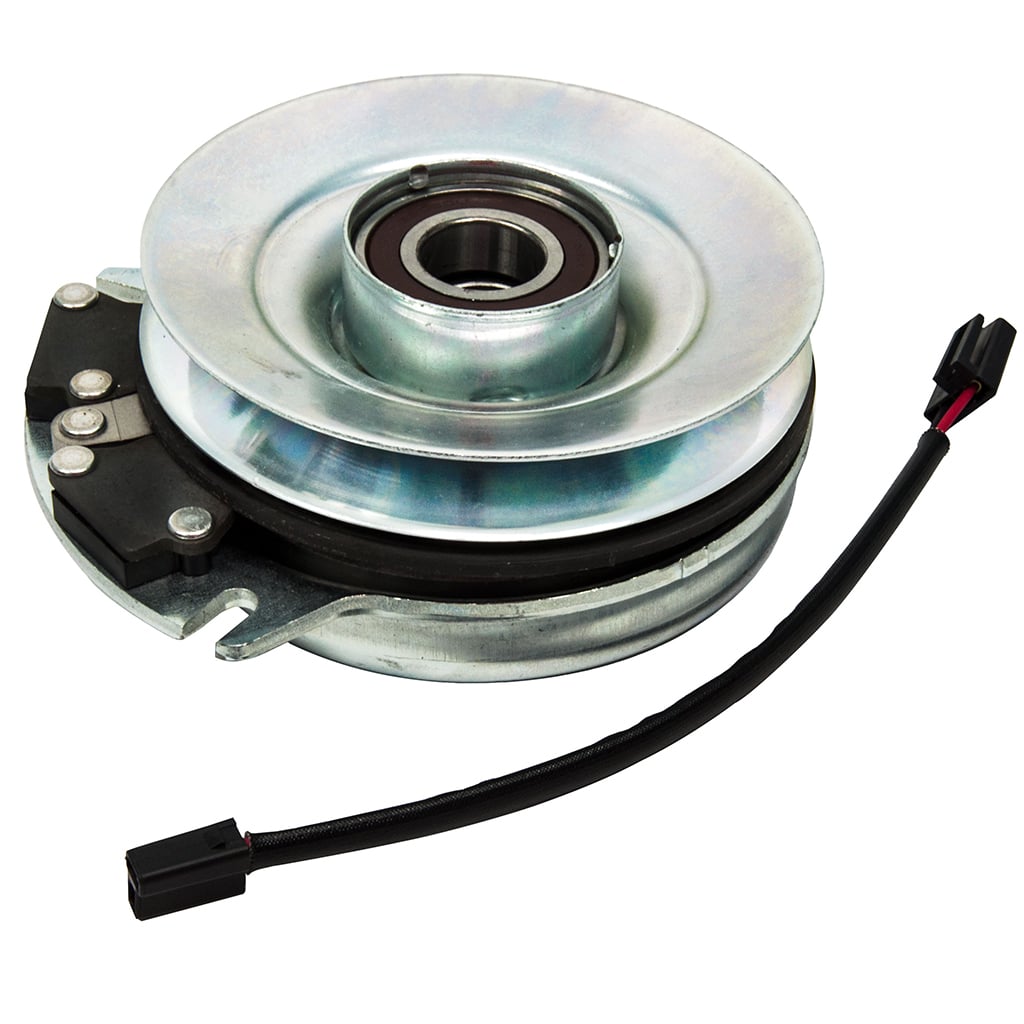

ELECTRIC PTO CLUTCH ASSEMBLY 1-1/8" ID X 6.25" PULLEY

Description: Electric PTO Clutch Assembly

Replaces OEM: Bad Boy: 070-5035-00

BigDog: 601311

Exmark: 103-0665, 1-631732, 1-641300

Grasshopper: 388740

Hustler: 787366, 601311

Toro 103-0501, 103-0665

Warner 5218-65, 5218-213

Inside Diameter: (inches) 1 1/8

Inside Diameter: (mm) 28

Height: (inches) 3 5/8

Height: (mm) 92.07

Pulley Diameter : (inches) 6.25

Pulley Diameter : (mm) 158.75

Fits: Selected BigDog ZTR models including X-Series models 931543, 931584.

Fits: Selected Hustler ZTR models including Super Z model 927046, Super Z XR7 model 927996, X-One models 931675EX, 930511EX, 930545EX, Hustler Z models 727053, 926881, 927814.

Fits: Selected Toro 72" cut Z286E Z master (model 74241) fitted with 26hp Kohler engines built between 2001 & 2002.

Features: Manufactured by an OEM supplier. Uses 5/8" V-belt ("B" or 69 series belt). Operates in a clockwise direction.

Standard Pack Quantity: 1

Please Note: IMPORTANT INFORMATION ON ELECTRIC CLUTCHES

Over the counter sales of clutches as spare parts should be discouraged.

WHY? - The main causes of failures to electric clutches are due to faults with the

battery and/or charging circuits not providing the correct current to operate the

clutch adequately leading to premature failure. Electric PTO clutches are a

specialist component that should only be fitted by a servicing dealer with the

correct equipment to test both the charging circuits and battery condition. It is

therefore the responsibility of the servicing dealer to test these items prior to

installing a new clutch. Failure to do so will void warranty. Warranty covers

normal use and does not cover damage or defect which results from alteration,

accident, neglect, or improper clutch selection, installation, operation, or

maintenance. Warranty covers faulty manufacture and/or workmanship.

GA Spares stocks electric clutches manufactured by an OEM supplier.

Brand: Bad Boy - Non Genuine, BigDog - Non Genuine, Exmark - Non Genuine, Grasshopper - Non Genuine, Hustler - Non Genuine, Toro - Non Genuine, Warner,

Product Line: Electric Clutch, Clutch - Electric,

GTIN: 9316596095001

Fitment: To72, Huz, Husuperz, Hux1, Bdx, Toro, Hustler, Badboy, Grasshopper, Exmark, Bigdog, Warner
