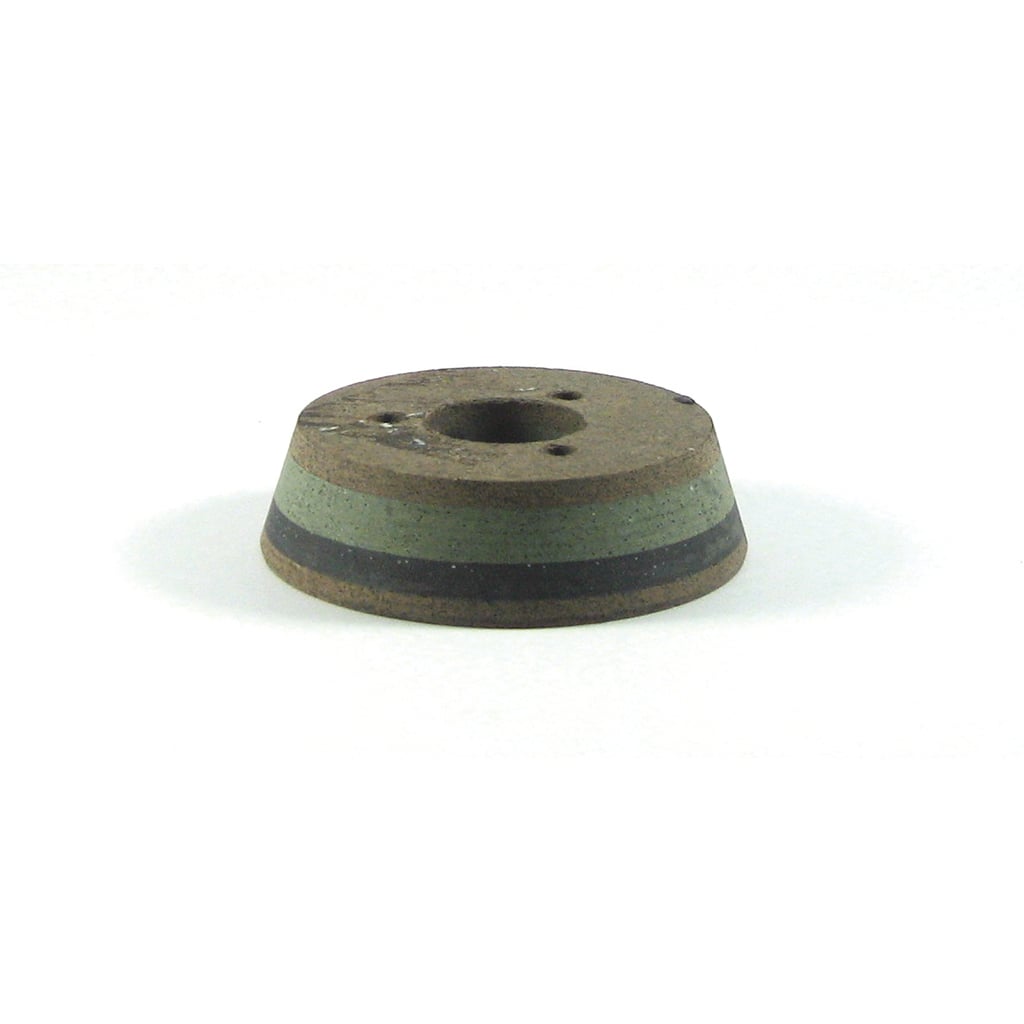

NON-GENUINE COX CLUTCH DRIVE CONE - LATE STYLE WITH THREE OUTER MOUNTING HOLES

Description: Non-Genuine Cox Clutch Drive Cone - Late Style With Three Outer Mounting Holes

Replaces OEM: Cox CC2095NG, CC2095GNE, CC3095J, CC3095L,

Inside Diameter: (inches) 1.18"

Inside Diameter: (mm) 30 mm

Outside Diameter: (inches) 3.74"

Outside Diameter: (mm) 95 mm

Thickness: (inches) 1"

Thickness: (mm) 25.4 mm

Fits: Cox selected models including but not limited to New Generation, New ERA, C1332

[13/32, 13-32](13 hp models 9505G and 9506C years 2005 to 2007) ride-on lawn mower

models.

Features: Later style with 3 outer holes for locating screws.

Standard Pack Quantity: 1

Note: For early type clutch cone options, with one pin hole (note: not suited to the

models listed above), use our part numbers CHD5335 (non-genuine) or CHD6954

(genuine).

Please Note: When installing a new Cox drive cone please insure the drive plate surfaces are in

good condition with no grooves. It is necessary to deglaze the drive plate surface

so the new cone will not slip generating excessive heat & damaging the drive cone.

As the new cones can no longer contain asbestos over heating will cause premature

failure. A quick way to deglaze the drive plates is to use a 4" disc sander with

medium grit paper. This can also be done quickly at each service to reduce drive

failure. It is only necessary to take the shine off the surface to give the cone a

surface to grip to. Any grooves will need to be machined in a lathe.

Brand: Cox Non-Genuine,

Product Line: Clutch cone, cone - clutch, drive cone - clutch,

GTIN: 9316596076963

Fitment: Cong, Cox
