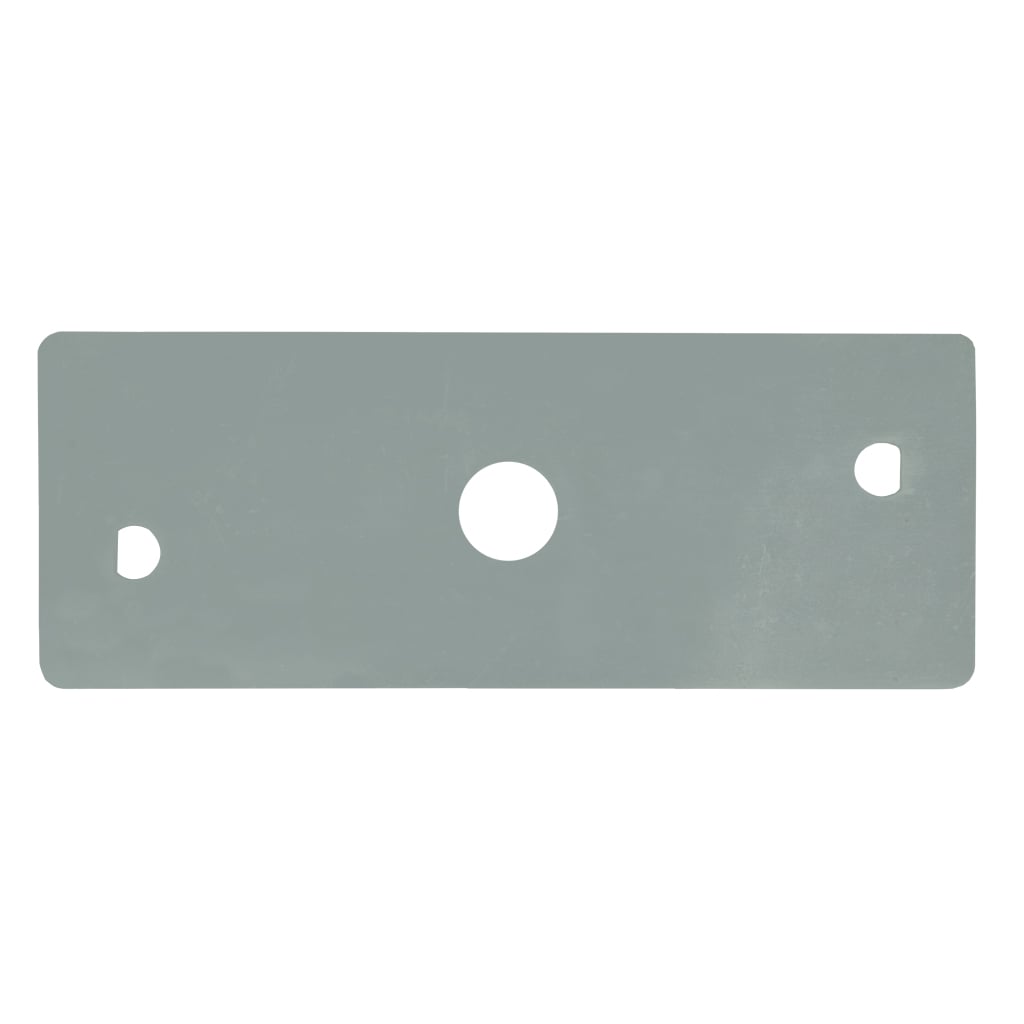

TORO FLAT COMPOSITE BAR X 3 FOR 50" CUT

Description: Non-Genuine TORO® Selected 50" Cut Flat, Swing Back Blade Conversion Carrier Bar

Centre Hole Dia. (inches) 5/8"

Centre Hole Dia. (mm) 15.875 mm

Length: (in): 6 11/16"

Length: (mm): 170 mm

Thickness: (inches) 0.1968"

Thickness: (mm) 5 mm

Centre Hole Type: Round

Deck (inches) 50"

Deck (mm) 1270 mm

Fits: 50" (1270 mm) cut TORO® TimeCutter® Z models including Z5000, Z5020, Z5030,

Z5035, Z5040, Z5060 zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 composite bars required for 50" cut.

Australian Made: Yes

Features: • Converts units which came standard off the production line with bar blades and

allows them to be fitted with swing back blades. Please order the swing back blades

separately from the options listed below.

• "D" hole to "D" hole: 5.322" (135.17 mm)

Standard Pack Quantity: 1

Note: All blade carriers are sold as singles, order the quantity required to make up a

set.

Please Note: Use with our part numbers BRC5543 x 3 qty swing back blade and bolt combo's or

BLS3653 x 3 qty swing back blade sets and BBN3722 x 3 qty bolt sets.

For a standard bar blade option use our BLR7599 x 3 qty, for a Gator Mulcher® bar

blade option use our BLR7820 x 3 qty.

Brand: Toro - Non Genuine,

Product Line: bar - blade carrier, blade holder bar, composite blade carrier bar, blade carrier

bar, swing back blade carrier bar,

GTIN: 9316596097654

Fitment: Totcutterz, Toro
